Modlite Multi-Mode Handheld PLHv3 18350 Light - 60,000 Candela Threat Disruption - 3-Hour Max Runtime - Made in USA

Modlite Multi-Mode Handheld PLHv3 18350 Light: The High-Candela Tactical Flashlight for Duty and EDC

• The Modlite multi-mode Handheld PLHv3 is a professional-grade illumination tool built for everyday carry and demanding duty use. Made and assembled in the USA with Mil-Spec hard-anodized aluminum, this compact flashlight balances long-range target identification with wide peripheral awareness. It provides law enforcement and civilians with a highly reliable light source engineered specifically for high-stress kinetic engagements and daily administrative tasks.
• Project Blinding Light with 60,000 Candela & 1,500 Lumens: The PLHv3 head delivers a massive wall of light that easily punches through tinted glass, thick fog, and opposing streetlights. The intense central hotspot reaches distant targets, while the wide spill beam keeps your peripheral vision fully fed with visual data for close-quarters room-clearing.
• Maintain Awareness for 3.6 Hours in Admin Mode: You can quickly program the light to drop to 15% output for close-up tasks. This softer beam prevents immediate self-blinding against close walls and extends the rechargeable cell's battery life to an expansive 3.6 hours. Running the light on maximum output gives you 35 to 40 minutes of constant, high-power runtime.
• Survive Extreme Impacts with SCAR 17 Rated Electronics: The internal electronic drivers are completely encased in a solid, shock-absorbing epoxy process known as potting. This renders the Modlite handheld light practically indestructible, allowing it to withstand high-velocity drops onto concrete and the violent bidirectional recoil of a fully automatic .308 rifle.
• Maximize Power Output Using the 18350 Protected Cell: To achieve these massive performance numbers in a concealable 4-inch frame, the Modlite PLHv3 18350 runs exclusively on high-drain rechargeable lithium-ion batteries.

Modlite Multi-Mode Handheld PLHv3 System Breakdown

Accessories For The Modlite Multi-Mode Handheld PLHv3 18350 Light

• Thyrm Switchback 2.0 Pocket Clip: A specialized tactical ring that significantly upgrades the operator's grip on the compact 18350 body. It allows the user to securely index the light and deploy it alongside a handgun, maintaining a stable two-handed firing grip during low-light combative encounters.
• Thyrm SwitchBack 3.0 Duty Flashlight Ring: Engineered specifically for overt law enforcement and military loadouts, this ring optimizes how the light is drawn from a duty belt. It provides a highly reliable finger-loop for immediate, secure deployment when fine motor skills are diminished.

• Thyrm SwitchBack 3.0 Deep Carry Flashlight Ring: This highly optimized clip allows the compact 18350 light body to sit deeper inside a standard pocket for maximum concealment. It expertly balances low-visibility everyday carry (EDC) with the rapid, reliable access provided by the integrated deployment ring.
• Thyrm LPC: This color-matched, low-profile pocket clip securely anchors the flashlight into tactical webbing or standard clothing. It prioritizes a slim, unobtrusive footprint, making it the ideal hardware solution for plainclothes operations or standard administrative utility carry.

Multi-Mode Handheld PLHv3 18350 Light Features & Specifications

The Modlite Multi-Mode handheld PLHv3 is an uncompromising everyday carry tool designed for professionals who demand absolute reliability in unpredictable environments. Unlike traditional single-mode tactical lights that cause instant self-blinding indoors, this compact system lets you control your illumination. It perfectly balances a blinding 60,000-candela beam to punch through heavy fog, tinted glass, and long distances, with a bright, wide spill that keeps your peripheral vision fed with critical data during close-quarters room-clearing.

Key Features

• User-Programmable Multi-Mode: Easily shift from 100% maximum output for immediate threat identification to a 15% "Admin Mode" for close-up tasks like reading maps, checking IDs, or navigating dark stairwells without blinding yourself.
• Indestructible Potted Electronics: The internal electronic drivers are entirely encased in a solid, shock-absorbing resin. This process protects fragile connections, guaranteeing the light survives severe drops to concrete and the violent recoil of a fully automatic FN SCAR 17.
• Optimal Threat Detection Tint: The cool-white 5700K emitter mimics natural midday sunlight. This specific color temperature forces your eyes to process contrast, movement, and fine details significantly faster under stress.
• Deep Concealment & Fast Access: Includes a color-matched Thyrm Low Profile Carry (LPC) clip. Made from heavy-duty polymer, it provides secure pocket retention while offering side texturing and control winglets for a rapid, slip-free draw with wet or gloved hands.
• Ultra-Clear Thermal Lens: A premium BOROFLOAT glass lens guards the emitter against intense heat and extreme temperature shifts while allowing 98% to 99% of the light to pass through for maximum efficiency.
• Modular Ecosystem Design: The PLHv3 head is fully backward compatible. You can seamlessly thread it onto a larger Modlite 18650 body later if you need extended runtimes or dual-fuel capabilities for disposable CR123 batteries.

Specifications

• Maximum Output: 1,500 Lumens
• Peak Beam Intensity: 60,000 Candela
• High Mode Runtime: 35 to 40 minutes of constant output
• Admin Mode Runtime: Approximately 3.6 hours at 15% power
• Power Source: One (1) rechargeable 18350 lithium-ion battery (Modlite Protected Cell strongly recommended; a single CR123 will not power this unit)
• Total Length: 4.0 inches (with tail cap attached)
• Body Diameter: 1.0 inch (without head)
• Head Diameter: 1.187 to 1.25 inches
• Total Weight: 4.5 oz (with battery) / 3.6 oz (without battery)
• Material Construction: 6061 Series Aerospace-Grade Aluminum
• Surface Finish: Mil-Spec Type 3 Hardcoat Anodizing
• Manufacturing Origin: Made and assembled in the USA

What comes in the box of the Multi-Mode Handheld PLHv3 18350

• (1) PLHv3 Multi-Mode Light Head
• (1) 18350 Handheld Body
• (1) Tail Cap
• (1) Color-Matched Thyrm Low Profile Carry (LPC) Clip (installed directly from the factory)
• (1) Modlite 18350 Rechargeable Protected Cell Battery
• (1) XTAR MC2 USB Charger

Modlite Multi-Mode Handheld PLHv3 18350 FAQs

Modlite PLHv3 18350 vs. Modlite PLHv3 18650: Which is Right for You?

Both of these exceptional tools share the same powerful light head, delivering the same 1,500 lumens and 60,000 candela to identify targets in the dark. The core difference between the Modlite PLHv3 18350 and the 18650 model comes down to the size of the battery tube and your daily mission.

• Modlite PLHv3 18350: Your perfect compact tactical flashlight. At only 4.0 inches long, it is engineered to easily disappear into your pocket for everyday carry without weighing you down. It delivers 35-40 minutes of continuous high-power runtime.
• Modlite PLHv3 18650: This longer version measures 5.25 inches, making it an excellent handheld flashlight for duty use on a police belt. Because it features a larger 4000mAh battery, it extends your high-power runtime to 75 minutes. Additionally, the longer 18650 body size unlocks true "Dual Fuel" capability, allowing you to run the light on two disposable CR123 batteries in an emergency.

If you need the best tactical EDC flashlight that is easy to hide, choose the 18350. If you need maximum battery life and do not mind a longer tool, the 18650 is the way to go.

What is the difference between lumens and candela in the Modlite flashlight specs?

Lumens measure the total amount of light a flashlight emits. Candela measures how tightly that light is focused into a beam. The Modlite multi-mode handheld PLHv3 delivers 1,500 lumens to illuminate a wide area, such as an entire room. It uses a massive 60,000 candela to push that light far away to cut through fog or dark glass.

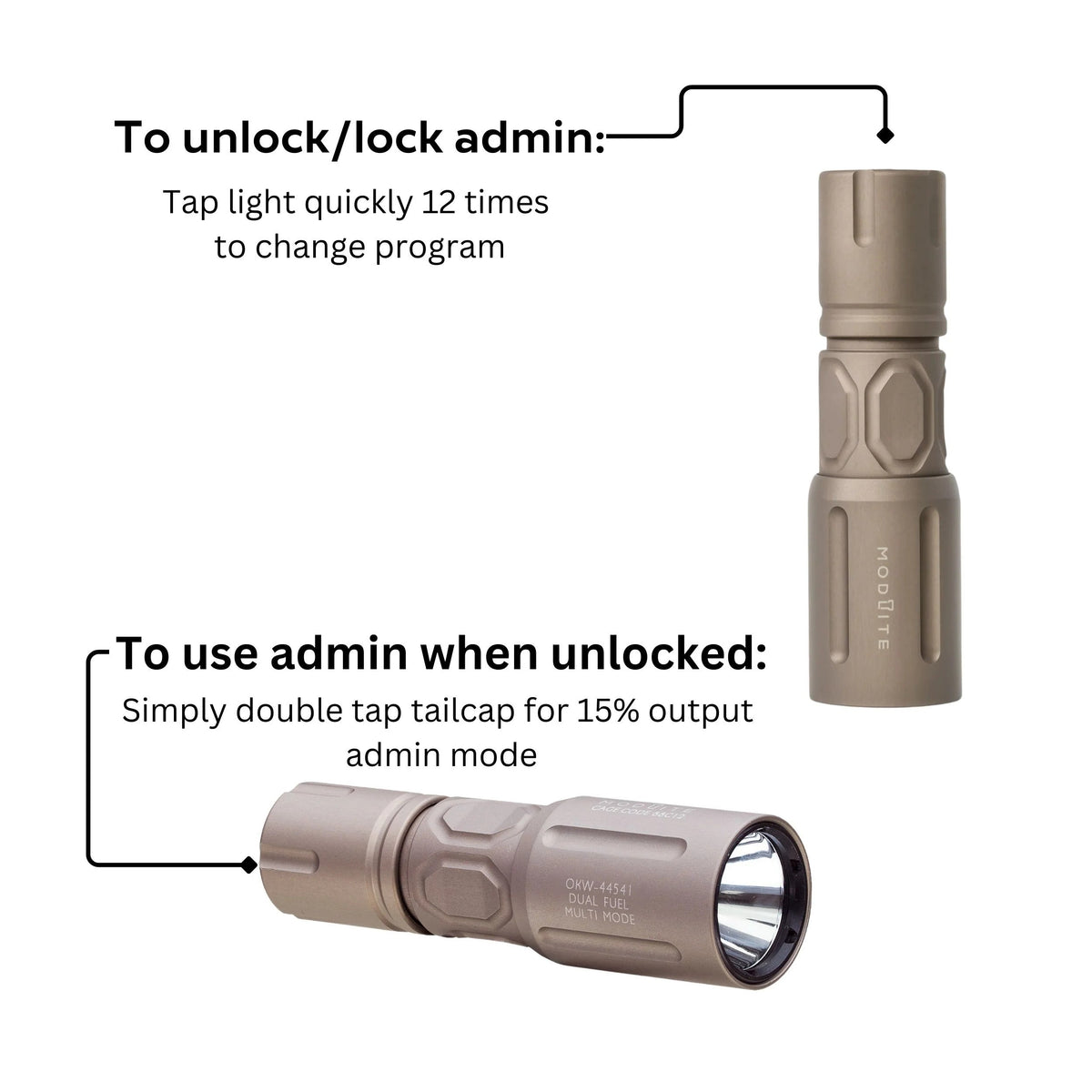

What is Admin Mode, and why do I need it in a compact tactical flashlight?

Admin Mode drops the PLHv3 flashlight power down to 15 percent. If you use full power to read a map or look at a bright white wall up close, the reflected light will instantly blind you. Admin Mode gives you a softer light that is safe for close-up work. It also saves power, allowing your Modlite 18350 flashlight battery to last over 3.6 hours.

What does it mean when the electronics are "potted" in a duty handheld flashlight?

Inside a high-tech tactical handheld flashlight are small computer parts. "Potted" means these delicate parts are fully encapsulated in a hard, shock-absorbing resin. This prevents small parts from shaking, bending, or breaking when you drop the Modlite handheld PLHv3 on hard concrete. It makes the flashlight extremely tough and almost impossible to break.

Can I use regular store batteries in this rechargeable 18350 flashlight?

No, you cannot use normal, throw-away CR123 batteries in this small light. The Modlite PLHv3 18350 runs exclusively on a special rechargeable 18350 lithium-ion battery. This specific battery gives the PLHv3 handheld light the massive burst of power it needs to be so bright. The flashlight comes with a USB charger, so you can easily keep the battery charged wherever you go.

Why is the light beam a "cool white" color on this high-candela flashlight?

This cool white color (called 5700K) looks exactly like natural sunlight at midday. When you are highly stressed or scared in the dark, this specific color helps your eyes see shapes, contrast, and fine details much faster than a yellow light would.

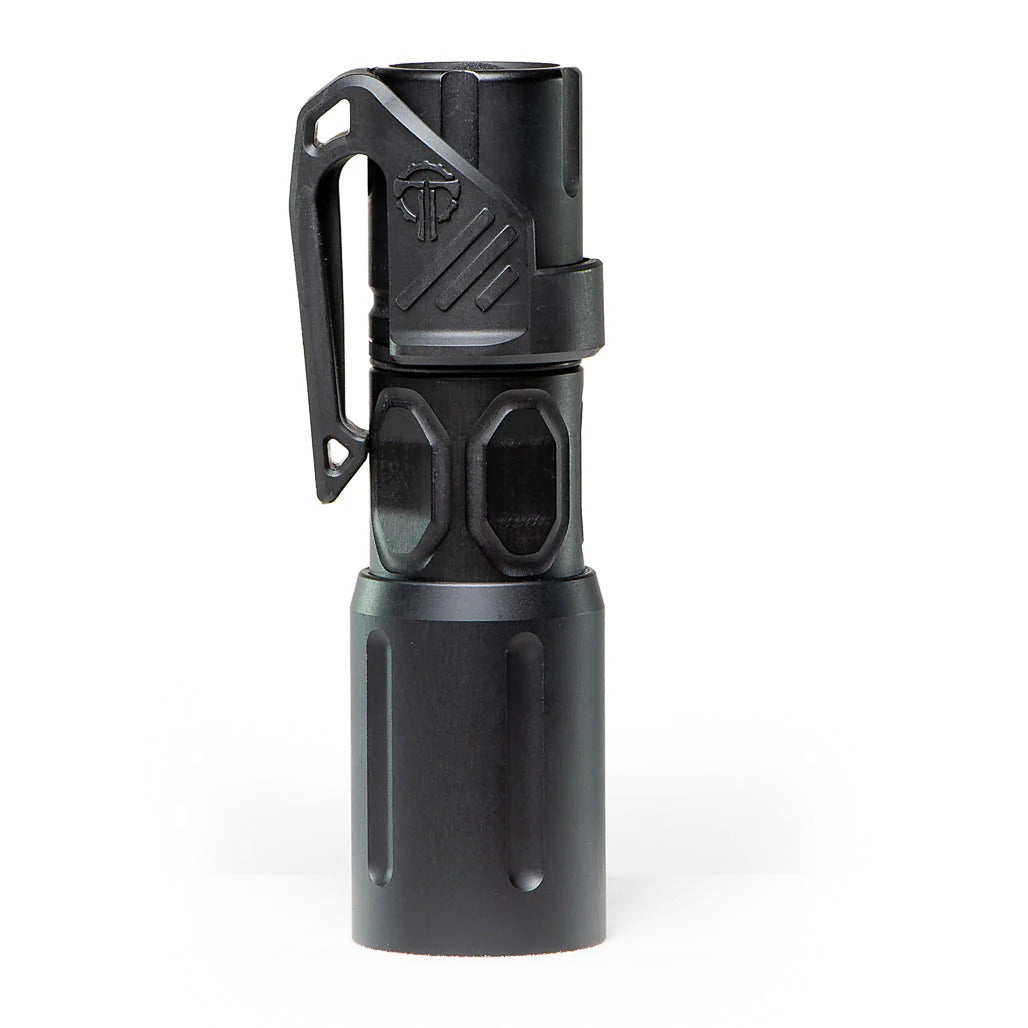

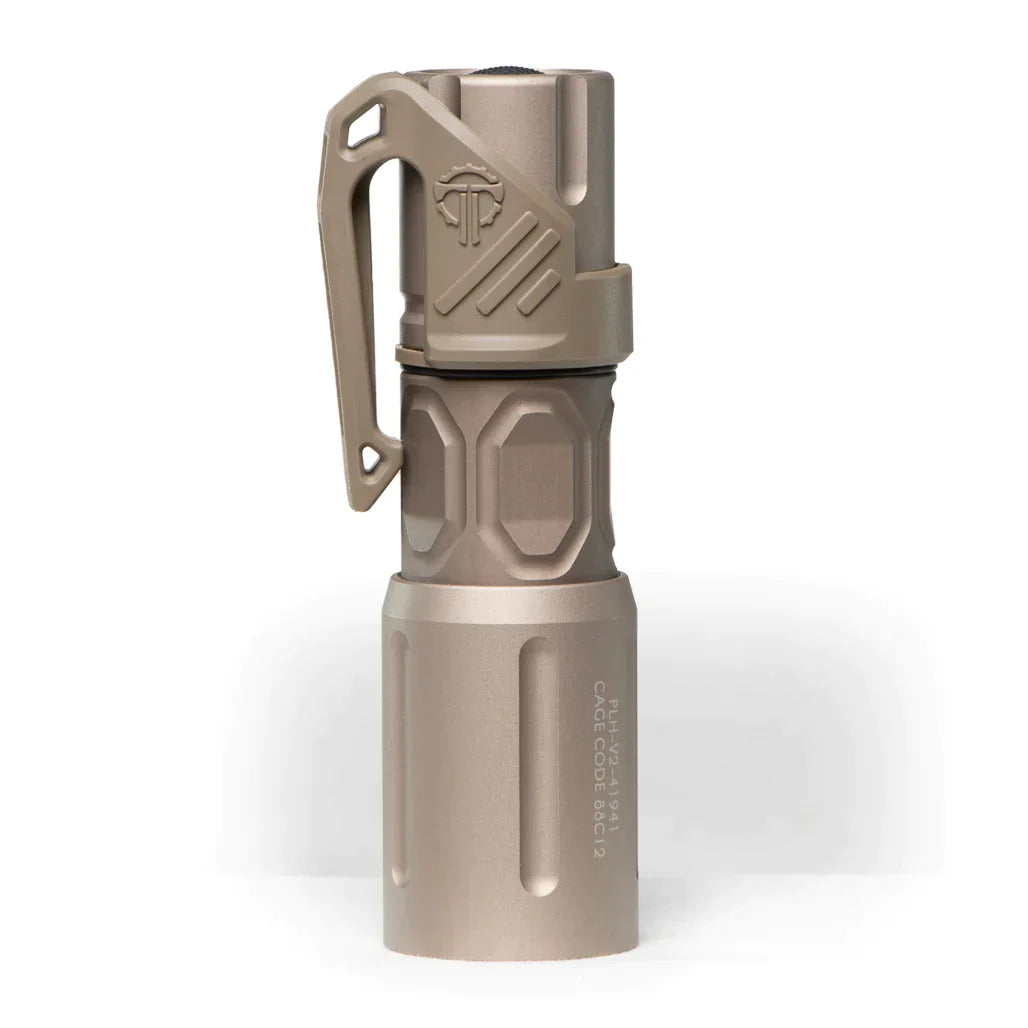

What is the Thyrm LPC clip on the Modlite EDC flashlight?

It is a strong plastic clip that holds the Modlite multi-mode light deep and safely inside your pocket. Because it is plastic and not metal, it will not scratch your car paint or rip your clothes. It also has small wings on the side so you can pull the Modlite PLHv3 light out fast, even if your hands are wet or you are wearing thick gloves.

Where to Buy the Modlite PLHv3 18350

If you are looking to buy the Modlite PLHv3 18350 Light, you can purchase the complete package right here at Atomic Defense. We provide law enforcement, military personnel, and responsible citizens with the highest quality gear available. Upgrade your everyday carry today with the definitive Modlite handheld light.
